Battery Selection Impact on AGV Performance: Which One Is the Ultimate Power Source
How Lead-Acid Batteries Limit AGV Performance
Lead-acid batteries only store one-third the energy of LFP batteries. Not only do they give you shorter runtime per charge, but their weight also takes up 15-20% of your AGV’s rated load. Worse still, they need 8-12 hours to charge fully. So you have to spend extra money on spare batteries for swapping.
Service life is another big problem. You need to replace lead-acid batteries at least every two years. And if you run them down completely, you’ll have to replace them even more often.
How LFP Batteries Boost AGV Performance Across the Board
Operating efficiency
Reliability
TCO benefits
Lifepo4 batteries last 4,000 to 6,000 cycles. That’s almost 10 times longer than lead-acid. We usually recommend not going below 20% charge, but they can safely go down to 10%. Even with the same rated capacity, LFP batteries give you twice the usable runtime of lead-acid batteries.
The Pros and Cons of NMC Batteries for AGVs
Among all mass-produced lithium batteries today, NMC has the highest energy density. So it’s the top choice for small, lightweight AGVs. It also works great for long-distance material handling.
On the flip side, NMC has some important drawbacks. It has worse heat stability than LFP. This means it has a higher risk of thermal runaway. So you need better safety protection. When buying NMC batteries, pay extra attention to the manufacturer’s heat management system and BMS protection features.
Also, NMC only lasts 2,000 to 3,000 cycles. For high-frequency operations, this will cost you more in replacement batteries over time.
Sodium-Ion Batteries Perform in Specific AGV Scenarios
Sodium-Ion Batteries Perform in Specific AGV Scenarios
Sodium-ion batteries keep over 80% of their capacity at temperatures below -20°C. You don’t need any extra heating systems. They also charge safely and efficiently in freezing conditions. Unlike lead-acid batteries, they don’t charge more slowly or less completely. And unlike lithium batteries, they never have the dangerous lithium plating problem.
Also, sodium-ion batteries have a more stable thermal runaway process. Their overall safety is actually slightly better than that of LFP batteries.
Other Important Considerations
Core Performance Metrics: The Battery Selection Impact on AGV Performance
Energy Density: Direct Impact on AGV Runtime and Load Capacity
- Consistent operation: Low-energy-density batteries have short runtimes. They disrupt three-shift production schedules and force continuous production lines to stop.
- Cost per move: Heavy batteries take up rated load capacity and lower your payload efficiency. Their extra weight also increases AGV mechanical wear and electricity costs.
- Warehouse space efficiency: High-energy-density batteries let you build more compact AGVs. This means narrower aisles and more warehouse space for storage racks.
AGV Power Output: Battery Power
- Heavy lifting bottlenecks: Low-power batteries lose significant power when lifting over 70% of their rated load. Lifting speeds drop, or they can’t complete the lift at all.
- Complex terrain: Outdoor operations or high-bay warehouses often have slopes. A fully loaded AGV climbing a 5° slope can need 2.5 times its rated power. Insufficient power causes sudden slowdowns, stops, or even rollbacks.
- Fast sorting: In e-commerce warehouses, AGVs need frequent starts, stops, and accelerations. High-power batteries handle these demands well and last longer.
How Battery Selection Affects Long-Term AGV Reliability
Cycle life is the number of charge-discharge cycles a battery can complete before its capacity drops to 80%. Long-life batteries (like LFP) reduce replacement frequency and lower your total cost of ownership.
Don’t just trust the numbers on the spec sheet. Judge based on real-world conditions:
Standard tests use 1C charge/discharge, 80% DOD, and a constant 25°C temperature. But your actual operation might use a 2C pulse discharge and 90% DOD. You need cycle life curves for different conditions.

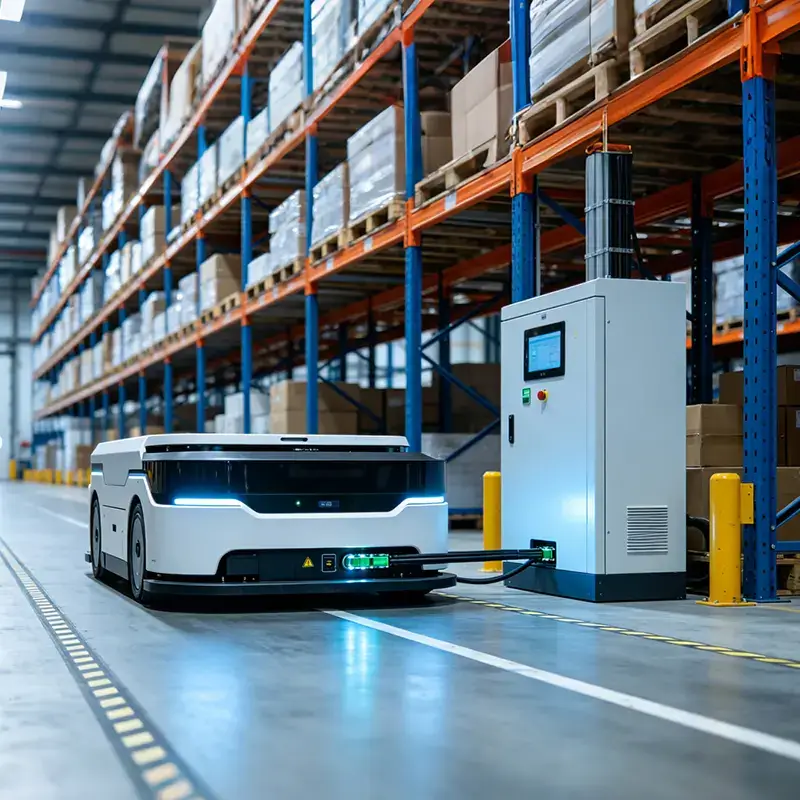

Charging Speed
The Invisible Operating System of AGVs: BMS
Basic Protection Functions
- Overcharge protection stops batteries from over-voltage, internal overheating, swelling, or leakage during charging. It removes fire and thermal runaway risks completely.
- As one of the reliable methods to ensure the long-term performance of AGV batteries, over-discharge protection prevents deep battery depletion and avoids permanent capacity loss and reduced runtime.
- Short circuit protection cuts power within milliseconds when circuits act abnormally. It stops high current from damaging cells, wire burns, and more serious accidents.
- Overheating protection tracks battery temperature in real time. It keeps AGVs safe during continuous, high-intensity work.
Real-Time State of Charge and Health Prediction
- High-precision SOC monitoring prevents AGVs from stopping mid-task. It keeps production lines running smoothly.
- SOH evaluation predicts battery degradation early. You can plan maintenance or replacement ahead of time.
Industrial Communication Protocol Compatibility
Industrial-standard communication is a key threshold for battery selection’s impact on AGV performance. Only BMS that supports common protocols like CAN, RS485, and UART can send real-time battery data and enable remote control.
If protocols do not match, communication fails. The main controller cannot read key data such as SOC and SOH. It can also not control remote power on/off or fault reset. This makes battery management far more complicated.
Fault Diagnosis and Preventive Maintenance Alerts
Once connected, the BMS reports detected faults and warnings in real time.
Fault diagnosis locates battery issues quickly. It greatly shortens repair time. Warnings let operators handle abnormal conditions early. They stop small problems from turning into major failures.
The log function helps you analyze battery usage. You can then improve your battery management strategy.
Structural Fit: Battery Selection Impact on AGV Performance Across All Scenarios
How Size and Weight Matching Affect AGV Space Utilization
An oversized battery will not fit into the AGV battery compartment. Modifying the compartment or switching batteries only adds extra cost and delays.
Poor weight matching hurts AGV payload and runtime. Too much weight weakens the chassis and requires extra reinforcement. Battery placement directly affects the center of gravity and anti-tip stability.
How Standardized Interfaces Improve AGV Battery Installation Efficiency
Non-standard interfaces slow down battery replacement. Swap time goes from 5 minutes to over 30 minutes per AGV. They also lock you into one supplier. You cannot mix different battery brands, and you lose pricing power.
Standardized plug-and-play interfaces let you replace lead-acid directly. This makes lithium upgrades simple and lowers your retrofit cost.
Battery Protection Ratings
- IP55 protects against dust and low-pressure water spray. It works for most general indoor industrial settings.
- And IP65 is fully dust-tight and resists direct water jets. It suits nearly all factories and warehouses.
- Next, IP67 is completely dust-tight and can handle short-term water immersion. It is ideal for outdoor use and port operations.
- Last, IP69K withstands high-temperature, high-pressure washing. It is the best choice for food processing, pharmaceuticals, and other frequent-wash environments.
Temperature Tolerance: Performance in Cold Stores and Hot Workshops
Standard LFP batteries lose over 50% capacity at -20°C in cold storage. Hot workshops speed up battery aging and raise thermal runaway risks.
Batteries with smart low-temperature heating and high-temperature cooling systems operate stably from -40°C to 65°C. They perform reliably in all kinds of extreme environments.
AGV Battery Selection Mistakes That 90% of People Make
Only Looking at Upfront Price, Ignoring Total Lifecycle Cost
- Lead-acid batteries have a short cycle life. Within the same period, the replacement frequency of lead-acid batteries is more than three times that of lithium batteries.
- Lead-acid batteries require regular maintenance; they will hardly reach their expected cycle life.
- Lower charging efficiency means you have to spend extra on backup batteries, increasing procurement costs.
Confusing AGV and AMR Requirements
- AGVs usually carry heavy loads, run on fixed paths, and accelerate gently. They need batteries with high energy density and lightweight.
- AMRs usually carry lighter loads and run on flexible paths. Due to frequent emergency stops and obstacle avoidance, the current is in high-frequency pulses. They need batteries with high energy density and strong high-power output.
Ignoring Future Compatibility
- As an AGV battery distributor, batteries with non-standard interfaces you stock cannot be used universally across multiple AGV fleets, leading to excess spare parts inventory.
- For an AGV system integrator, standardized batteries are more compatible with AGV control system upgrades and updated communication protocols.
- During AGV fleet operation, standardized batteries leave room for future fleet expansion. Whether expanding capacity or upgrading voltage, you only need to maintain one set of host computer protocols.
Conclusion
AGV battery selection and its impact span the entire lifecycle of an automation project, from design and deployment to long-term operation. It is never a minor afterthought that can be fixed later.
For 90% of general industrial scenarios, LFP batteries remain the undisputed first choice, thanks to their balanced performance, reliable safety, and lowest total lifecycle cost. NMC and sodium-ion batteries serve as important complementary options for some special scenarios.
If you are planning a new AGV project or looking for a power solution for your next AGV product, please contact our industrial battery expert team immediately. We will provide you with a customized battery selection recommendation and quotation within 24 hours.
