When an energy storage system transitions from a simple backup power source to a working asset performing daily peak shaving, load shifting, and demand management, the constant high heat load significantly alters the situation. The cooling system is no longer just an add-on; it’s a vital component. It becomes a key factor that changes system reliability, battery life, and total money returns directly.
In my 16 years with lithium battery R&D, making, and engineering, I see a clear fact. More project problems point back to one question: Does the thermal management system truly fit the real work conditions?
Real sites are not perfect labs. Industrial parks have dust and corrosive gases. Commercial basements have tight spaces and bad airflow. These places test the cooling system all the time.
Air cooling is simple and needs little care. Liquid cooling is exact and efficient. But the real choice is not picking the “better” tech on paper.
You must think from different sides: the technical ideas, the real heat load, system reliability, battery lifespan, and the total cost over the system’s life. The right choice needs careful matching of the cooling system to the special needs of your commercial and industrial storage project.
Basic Comparison
How They Work: Core Technology
Air Cooling uses air as the cooling medium. Fans make airflow over the battery surface to take heat away. Its work depends much on the outside air temperature, how clean the air is, and the duct design. In short, it is a method that reacts to the environment.
Liquid Cooling is different. It uses a coolant fluid. This fluid moves through exact-made cold plates or channels. These make direct, “close-contact” with the batteries to take away heat. This is an active, exact method. It controls temperature on its own, separate from the outside environment.
Performance Differences
The table below shows the key differences between these two technical paths clearly.
| Comparison Dimension | Air Cooling System | Liquid Cooling System |
| Efficiency | Poor heat transfer efficiency | Excellent heat transfer efficiency |
| Temperature Uniformity | Poor. | Excellent. |
| System Complexity | Mainly fans, ducts, and filters. Simple integration. | Requires cold plates, pumps, piping, heat exchangers, and coolant. High integration precision required. |
| System Energy Consumption | Comprehensive energy consumption is uneven, sometimes high and sometimes low, especially when AC is needed in hot weather. | Stable overall energy consumption. Relies on water pumps; largely eliminates the need for AC. |
| Environmental Adaptability | Requires protection from dust, fibers, salt spray, and corrosive gases. | The internal loop is isolated from the environment. However, external radiators are still affected by ambient temperature. |
| Initial Investment & Maintenance | Low initial investment, simple maintenance. | High initial investment, and maintenance requires professional inspection. |
Cooling Challenges
Factories needing continuous production and malls needing steady work face the same core challenge with their energy storage systems: good cooling.
The Challenge of Heat Load and Operation
Industrial Settings:
To get the most profit from time-of-use pricing, systems often use a “two-charge, two-discharge” plan or even more cycles. This means batteries are under constant, high-power stress during the hottest hours.
The cooling system must remove this heat steadily and work well even at peak outside temperatures. If the battery gets too hot and shuts down, it will stop at once.
Commercial Settings:
During the day, storage is used for peak shaving when loads from AC, lights, and elevators are high.
The cooling system must handle fast load changes. These systems are often put in tight spaces like electrical rooms or underground garages. This needs a cooling answer that is both compact and very efficient.

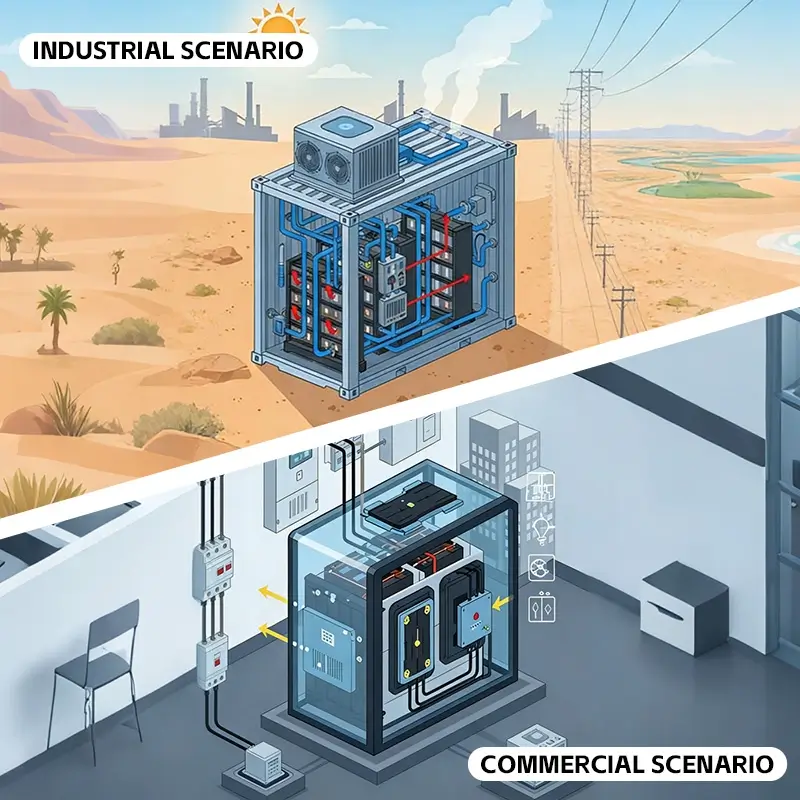

Environment and Space
In factories or industrial parks, dust and metal bits can block air cooling filters. Chemical gases, wet air, or salt spray can rust fan parts and fins, or dirty the outside radiators of a liquid system.
In commercial buildings, storage is often put in small underground parking or equipment rooms with bad airflow. Here, the cooling system must be space-saving and quiet, besides working well.
Impact on System Reliability
An unplanned power stop can halt a whole production line. This delays orders and costs money every minute. For malls, data centers, or hospitals, a stop causes money loss and can become a safety crisis.
The cooling system must be very reliable. Air cooling has simpler parts and fewer failures, but faces a higher risk from environmental damage. Liquid cooling handles environments better, but its design is more complex. It may need backup pumps and leak checking to be truly dependable.
Battery Life and Return on Investment
- The money model of a storage project depends much on the battery’s capacity over 8-10 years or more. Longer life means a better return.
- A basic rule: for every 10°C rise in temperature, battery aging can speed up a lot. Also, if temperatures are not even across cells, some will wear out faster than others. This shortens the life of the whole battery pack.
- So, the cooling system must do two things well: lower the overall battery temperature and keep the temperature difference between cells very small. This keeps consistency and slows down total capacity loss.
The Numbers: water cooling vs air cooling
We need a more exact way to measure the real performance of air cooling and liquid cooling.
Cooling Efficiency & Temperature Uniformity
- Air Cooling: Works well in small to medium systems with lower loads. But during high-power charging and discharging, the temperature difference between the air inlet and outlet of the battery pack can be over 8°C. The temperature difference between single cells can be over 5°C. This not only limits constant high-power work but also creates a “weakest link” effect. It speeds up the aging of the whole battery pack.
- Liquid Cooling: Coolants (like water-glycol) move heat much better than air. They can keep the biggest temperature difference between cells steady within 2-3°C. This makes sure the battery works in its best temperature range (e.g., 25±3°C). Better temperature evenness means slower capacity loss. This leads to a longer cycle life for the storage battery. It raises the total return of the storage project directly.
System Energy Use & Operating Cost
- Air Cooling: The main energy users are the AC compressor (to cool the air) and high-power fans. Their power use depends much on the outside temperature. Using only fans has the lowest power use. But in high heat with AC, industry guesses show its energy use could be 3-5% of the system’s total output energy.
- Liquid Cooling: The main energy users here are the circulation pump and the fans on the outdoor dry cooler. Power use is steadier. Under typical high-temperature, high-load conditions, the total cooling energy use is usually kept at 1.5-3% of the system’s energy.
Investment Cost
- Liquid cooling systems have precise parts like cold plates, pumps, valves, pipes, and heat exchangers. Their start cost is usually 2 to 6 times that of higher than an air cooling system.
- Air cooling needs regular filter cleaning or replacement. Care cost is low, often just tens of dollars. Liquid systems need checks of coolant quality or replacement. This is less often, but each time costs more, possibly over a hundred dollars. Replacing all the coolant costs even more.
But the biggest cost factor is how cooling changes battery life. Industry study and field data show that by year 8 in a hot climate project, batteries in a liquid-cooled system may keep 5-10% more capacity than those in an air-cooled one. This extra capacity makes an important extra income over the project’s life. Its value can be much bigger than the starting cost difference.
Environmental Suitability
Air cooling works better and costs less in areas with lower average yearly temperatures, low PM2.5, and no oil mist or corrosive gases. In harsh or very hot environments, liquid cooling is usually the better choice.
Maintenance
- Air Cooling: Simple jobs like cleaning or replacing filters. It needs fewer skilled people, but may need to be done often.
- Liquid Cooling: Needs more care to check coolant numbers and seal condition. The cycle is longer, with coolant replacement possibly needed only every 2-3 years.
Guide for Making Your Choice
Decision Logic: Balance
Choosing a cooling answer is not about picking the “best” on one single point. It is about finding the right balance between four key areas:
- Thermal Performance & Battery Life Needs: What level of temperature control exactness and evenness does your project need? This changes how fast the system ages and its usable life directly.
- Total Cost of Ownership (TCO): Look at all costs over the system’s life. Think about the starting price, plus care, energy for cooling, and the battery’s value at the end.
- Site & Engineering Limits: Honestly check the physical space, air quality (dust, corrosion), local climate, and how hard it will be to connect to existing electrical systems.
- Risk & Operational Preference: How much risk can you accept for an unplanned shutdown? Also, think about your team’s technical skills and care habits.
Choosing by Project Scenario
Based on this logic, different projects and places lead to different technical paths and fitting products.
| Project & Scenario | Air Cooling Solution | Liquid Cooling Solution |
| Manufacturing / Industrial User (High electricity cost, sensitive to outages) | Scenario: Medium load, clean production environment, strict initial budget, small to medium projects with in-house electrical teams. Solution: Flexible, standardized storage cabinets with efficient air ducts and AC design are sufficient for cooling needs in mild conditions. | Scenario: 24/7 continuous production, extremely high electricity cost share, large projects in hot/dusty environments. Solution: Requires containerized or cabinet products specifically designed for liquid cooling (water cooling), with cell temperature differential ≤ 3°C. |
| Commercial/Complex Operator (Operational safety, brand image, hassle-free) | Scenario: Clear power demand, ample equipment room space, noise-sensitive commercial buildings. Solution: Air-cooled storage cabinets with a low-noise design are a common choice. | Scenario: High-end complexes, data centers, hospitals with extreme requirements for space efficiency, quiet operation, and smart remote control. Solution: Requires products with integrated liquid-cooled units. |
| EPC Contractor (Integration risk, delivery timeline) | Scenario: Well-defined technical scope, fixed budget and timeline, small to medium standardized projects. Solution: Often uses standardized, air-cooled storage products with simple interfaces and easy commissioning. | Scenario: Large, complex projects or those with strict performance guarantees (e.g., 10-year capacity retention). Solution: Pre-integrated liquid-cooled containers are preferred to minimize on-site commissioning uncertainty. |
| Solar PV Installer (Enhancing project value & competitiveness) | Scenario: Retrofitting existing PV for increased self-consumption, small to medium scale. Solution: Can choose compatible, plug-and-play, air-cooled integrated storage cabinets. | Scenario: Large-scale PV-storage hybrid projects requiring high-frequency, high-rate dispatch from storage. Solution: Must use liquid cooling-based (air vs water cooling) PV-storage integrated products. |
conclusion
When choosing between water cooling and air cooling, there is no single “best” option. Ultimately, each has its place.
For instance, if your storage project has a moderate load, works in a clean environment, and has a clear start budget, then an air cooling system is a practical and money-saving choice. Typically, it is simpler to care for and more straightforward.
However, if your project needs daily, high-strength “two-charge, two-discharge” cycles or faces tough conditions like dust and high heat, then the situation changes significantly. In these cases, a liquid cooling (water cooling) system becomes the clear choice. Specifically, its exact temperature control and higher efficiency give long-term steadiness and better battery capacity keeping.
Therefore, making the right choice depends completely on your specific project conditions.
For this reason, if you are checking or planning an energy storage project for an industrial park, factory, or commercial site, please contact us now. As a partner focused on lithium batteries and storage systems, we provide a one-stop energy storage solution.
