The full potential of an AGV hinges on its core power system—the battery. As automation advances, companies demand greater stability in runtime, operational efficiency, safety, and predictability. This is precisely why the AGV LiFePO4 Battery is becoming the preferred choice for an increasing number of factories and warehouse systems.
Next, drawing on 15 years of experience in lithium batteries, I will provide a comprehensive breakdown of LiFePO4’s suitability for AGVs. I’ll cover operational characteristics, technical specifications, system integration, and selection methodology.

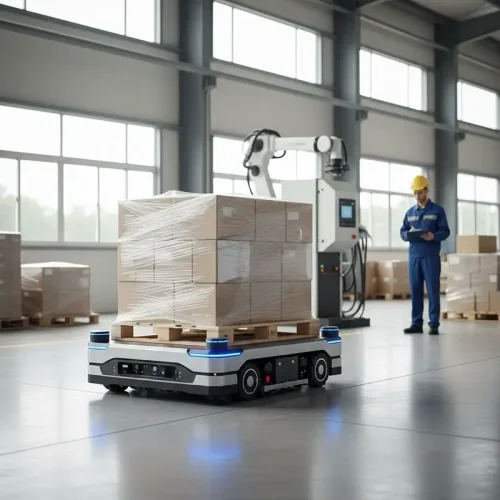

AGV Operating Characteristics
AGVs are excellent because they work automatically without tiring. But this means their power system – the battery – needs very tough things.
Continuous, Long-Duration Operation
In automated lines, logistics centers, and workshops, AGV systems often operate for multiple shifts or continuously, 24/7. People stop, but vehicles do not.
This needs an industrial-grade battery that rarely fails. It must maintain a steady voltage, controlled heat, and consistent performance over long periods of use without deteriorating.
Frequent Cycling & Instant High-Current Demands
It has short work cycles. They often speed up, lift things, and stop suddenly. This means the battery does not release power evenly. It faces instant high-power spikes again and again. Also, AGVs use a short stop to charge a little. This leads to a very high number of charge and discharge cycles.
Only batteries that tolerate high discharge rates, operate in a wide temperature range, and support fast charging are suitable here.
Severe Internal Space Constraints
AGV design prioritizes compact size and a high payload-to-weight ratio. The space reserved for the battery is minimal and often irregularly shaped. As a primary source of weight, the battery’s mass directly impacts the AGV’s carrying capacity and motion energy consumption.
This necessitates batteries with high energy density and high power density. It also requires a battery manufacturer capable of providing battery packs with flexible, customizable shapes.
The Technical Advantages of LiFePO4 Batteries
LiFePO4 (Lithium Iron Phosphate) batteries fit AGV work needs very well because of their special chemical traits.
Fast Charging Capability

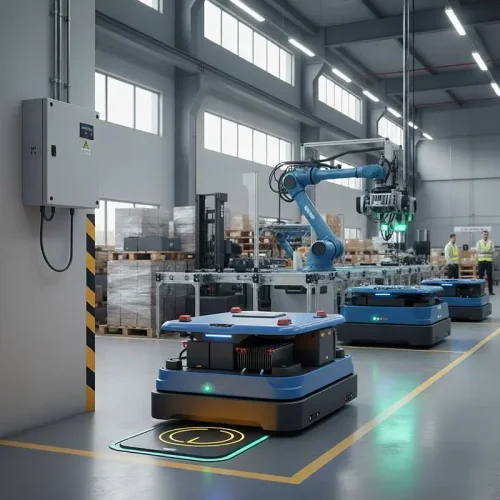

AGVs do not follow a simple “use up then charge full” pattern. They use a plan called Opportunity Charging. This means they add a little power during every short stop, wait, or idle time.
Most lithium batteries, like LiFePO4, support fast charging. Multiple small charges do not hurt their life much. The heat from fast charging again shows LiFePO4’s good heat stability.
Ultra-Long Cycle Life
LiFePO4 batteries offer a very long lifespan. They typically last for over 2,000 full charge cycles while still retaining 80% of their original capacity.
For AGVs that use many small “opportunity charges” and complete dozens of cycles each day, this is a significant advantage. It extends the time between battery replacements from months to years. This cuts battery replacement costs and machine downtime a lot.
High Energy & Power Density
In minimal space and with strict weight limits. Here, LiFePO4 batteries excel with their high energy density. They provide the same runtime or even longer, while being lighter and more compact than alternatives.
While other lithium chemistries (like NMC) may offer higher energy density, LiFePO4 remains the optimal overall choice when balancing energy with critical factors like safety.
Superior Safety
Safety is an absolute priority.
AGVs often work in tight spaces near hot motors and controllers, and they often run with no person watching.
The olivine structure of LiFePO4 material gives it very high heat stability. Its overheating point is much higher than that of other lithium-ion batteries.
So, even during long AGV use, where some heat is normal, LiFePO4 batteries keep a very high safety level.
High-Rate Discharge Performance
When performing tasks like lifting, towing, or climbing slopes, an AGV needs a sudden burst of power—several times its rated current.
LiFePO4 batteries possess excellent high-rate discharge capability. They handle these instantaneous high-current demands easily and reliably.
Integrating LiFePO4 Batteries with AGV Systems
The whole AGV system depends on the battery. The scheduling system, drive motors, navigation, controllers, and charging stations all need steady power and data from the battery.
Standard Communication Protocols
An AGV’s control system needs to read battery data. This requires the battery to use standard communication methods. Common ones are CAN and RS485.
The battery must have clear data messages. This enables seamless information sharing between the AGV’s main controller and the higher-level fleet management software.
Intelligent BMS Integration
Modern AGVs are becoming smarter. The battery must be a part of this smart system.
The Battery Management System (BMS) plays a key role. It collects real-time data from every cell: voltage, temperature, and current. It accurately calculates the State of Charge (SOC) and State of Health (SOH).
This data is sent through the communication port. Using this information, the system can guess battery life, give early problem warnings, and turn on safety stops.

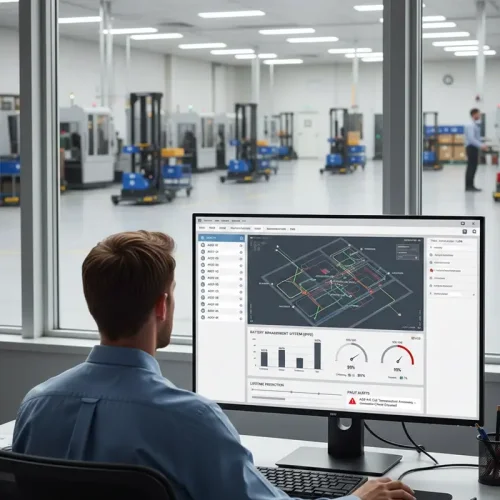

For fleet managers, this means live visibility. They can see details for every AGV on one central screen. This allows smart job scheduling and fast problem fixing.
Stable Voltage Platform
Sensors and motors are sensitive to power quality.
- Large voltage fluctuations can cause navigation systems to drift or lose signal.
- A rapid voltage drop can lead to insufficient power for driving motors.
- Unstable power causes controller alarms and jerky movements.
LiFePO4 batteries have a very flat discharge voltage line. This stable voltage platform keeps critical AGV performance. It keeps route accuracy for navigation and gives steady power for speeding up, lifting speed, and top speed.
How to Choose the Right LiFePO4 Battery for Your AGV
With many products and solutions on the market, how do you make the smartest choice for your specific needs?
Voltage & Capacity
Start with the fundamentals. You must confirm:
- The voltage platform (e.g., 24V / 36V / 48V / 72V) matches your AGV’s system.
- The discharge curve is stable. Avoid a voltage sag that could leave your AGV underpowered.
- The capacity supports your required operating shifts (single, double, or 24 hours).
The battery’s stated voltage must match exactly. Pick a capacity that fits your needs – bigger is not always better.
Continuous & Peak Current
Before purchasing, confirm these specs with the battery manufacturer:
- Continuous Discharge Current: This must meet the demands of your AGV’s long-term operation.
- Peak Current: This covers immediate needs, such as startup, rapid acceleration, climbing slopes, or powering hydraulic lift pumps.
For different AGV types, focus varies:
- Underride Pallet Jacks: Pay close attention to the peak current during the lifting moment.
- Heavy-Duty Forklifts: Assess the combined demands of both travel and lifting.
Does the Physical Size Fit?
The battery pack must fit into your AGV’s specific battery compartment. The connection method must be safe and reliable.
Also, check if the battery’s shock resistance and cooling design meet your operational requirements.
Customization
The product lines are many. Standard batteries often cannot meet the needs of different models. Picking a battery maker with strong custom skills is key.
Checking the supplier’s strength is important. Do they have a pro design team? Knowing that custom work usually means extra development costs and a longer wait time.
conclusion
As automated production lines and smart warehouses continue to scale, LiFePO4 batteries are proving to be an ideal match for AGVs. Their advantages—ultra-long cycle life, high safety, high-rate capability, and fast charging—align perfectly with the operational demands of AGVs.
Moreover, their intelligent BMS and stable voltage platform enable deep integration with AGV systems. This transforms energy management from a “black box” into a predictable, optimizable digital asset.
If you are evaluating a suitable battery solution for your AGV equipment, contact us now for a more detailed technical assessment and selection advice.
