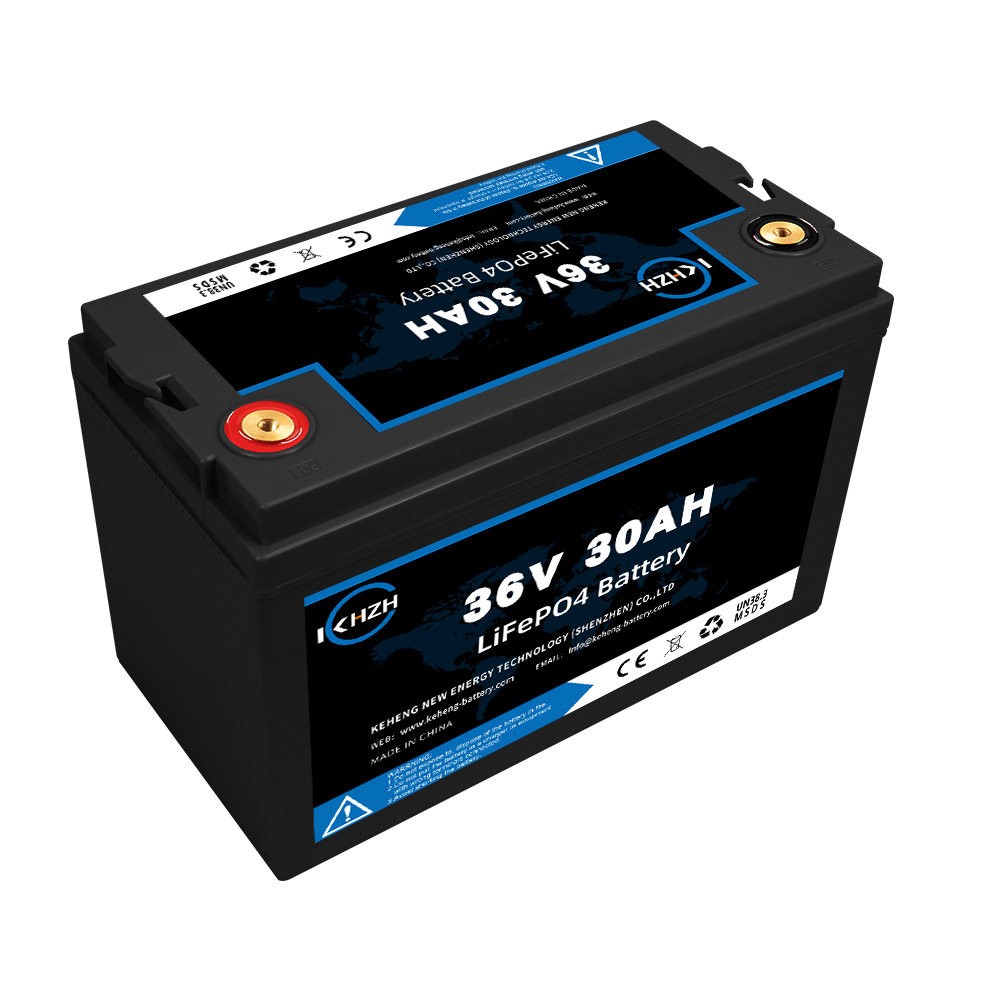

Deep Cycle 36V 30Ah Lithium Battery (LiFePO4 ) for AGV

Model: KH-LFP-3630
38.4V  30AH
Place of Origin: China
Brand Name:KH OEM
Model Number: Model: KH-LFP-3630
Price: Negotiable
Support: Wholesale, OEM.ODM
Warranty: 10 years

Deep Cycle 36V 30Ah Lithium Battery

This 36V 30Ah lithium battery are made by Lithium iron phosphate (LiFePO4 ) material, which is the safest and most robust lithium chemistry.  The lithium iron phosphate (LiFePO4) industrial deep cycle battery can be recharged thousands of times providing 100% DOD (depth of discharge)  —2,000+ recharge cycles, and up to 7,000 under ideal charging conditions.

5 times lifespan than typical SLA battery, which also incorporate a proprietary high-current BMS that delivers superior peak power along with lightning fast 1C continuous charge and discharge rates, plus they feature COLD CHARGE functionality allowing for cold temperature charging to begin from -20⁰C / -4⁰F.

Independently tested to the highest safety, performance and transportation standards, a single battery will do the work of many lead-acid batteries and unlike lead-acid batteries can be continuously operated in a Partial State of Charge (PSOC) without degrading performance.providing exceptional lifetime value.

30 Amp hours of capacity provides a full day of power for high amp draw electronics like AGV, AMR, Golf carts, RVs, marine, solar system etc, or anything where you need a longer run time.

36V 30Ah Deep Cycel Lithium Battery

Battery Management System (BMS)

Battery Management System (BMS)

Grade A 36V 30Ah Deep Cycel Lithium Battery Cells

More ThanLife CyclesThe independent bracket has better stability and perfect battery protection.

Grade A 36V 30Ah Deep Cycel Lithium Battery Cells

Grade A Hight Quality Battery ip66 Waterproof Box

Grade A Hight Quality Battery ip66 Waterproof Box

Deep Cycle LiFePO4 vs. Lead Acid – Pros and Cons

LiFePO4 batteries have a longer cycle life of 2,000 to 4,000 charge-discharge cycles compared to similar sized lead-acid batteries, which are inherently bulkier and require frequent maintenance compared to 500 to 1,000 cycles. Toxic gases may also be released during use, and electrolyte spillage should be prevented during storage.

Deep Cycle LiFePO4

Deep Cycel Lithium Battery Applications

  • AGV/Automated Guided Vehicles
  • AMR/Autonomous Mobile Robots
  • Golf carts
  • Recreational Vehicles(RVs)
  • Marine machine
  • UPS Backup power system
  • Solar street light
  • Trolling motor battery
  • Lawn mowers

36V 30Ah Deep Cycel Lithium Battery 1 1

36V 30Ah Deep Cycel Lithium Battery Series And Parallel

Series and parallel are the connection methods of all battery cells, and all connections are based on these two connection methods. A single battery cell can play a very limited role, such as LiFePO4 battery, a single cell has only a voltage of 3.2V, and the maximum capacity generally does not exceed 350Ah, which is obviously insufficient for battery backup or energy storage equipment.

To use more power, the energy of the battery pack can only be increased by connecting the batteries in series and parallel. How to correctly use the series and parallel has also become a necessary knowledge for DIY battery equipment.

Series and parallel connection is an indispensable part of LiFePO4 battery DIY, if you are considering building your own LiFePO4 battery pack, then series and parallel connection is the knowledge that must be learned thoroughly.

36V 30Ah Deep Cycel Lithium Battery 5 1

Related Guidelines

Storage and Maintenance Guidelines for LiFePO4 Batteries
Precautions for installation and maintenance of lfp battery pack

Features

  • The working temperature can reach -20°C
  •  LCD display optional, real-time understanding of battery voltage and capacity.
  •  30A continuous output current can continuously charge big-power devices.
  •  The intelligent BMS system can accurately control the battery to improve the lifespan, no explosion, no fire.
  •  Drop-in replacement for heavy lead-acid(AGM / GEL) battery,1/3weight but same capacity.
  • 2000times cycle life@100% DOD , 7000times cycle life@50% DOD , 10 years design lifespan.
  • Maintenance-free, fully sealed, and waterproof.



Intelligent Battery Management System(BMS)

  • Over charge protection function
  • Over discharge protection function
  • Over current protection function
  • Short protection function
  • Over temperature protection function
  • Automatic cell balance function

Technical data

Nominal Voltage 38.4V
Rated Capacity 30AH @0.5C to 32.4V
Stored energy 1152Wh
Cycle life@100%DOD 2000 Cycles
Approx. Weight 11kg
Internal Resistance ≤40.0 mΩ
Max. Charge Current 30 A
Max. Discharge Current 30 A
Charge Cut-off Voltage 42.8V
Discharge Cut-Off Voltage 32.4V
Dimensions L260mm×W180mm×H247mm
Low temperature self heating Avaliable(0~-20°C)
Operating Temperature Range

Charge

Discharge

Recommended



-4°F (-20°C) to 113°F (45°C)

-4°F (-20°C) to 140°F (60°C)

59°F (15°C) to 95°F (35°C)

Self-Discharge Rate ≤3%/month
Life Expectancy (years) 15 years @25°C in 80%DOD
Self Discharge Approx. 3% per month @ 25°C
Long Term Storage Charge every 6 months
Short Circuit Protection Automatically recover after removal of short
Terminal Type Female Copper Insert M8 (M8/mm)

PERFORMANCE CHARACTERRISTICS
