Group 31 12V 100Ah LiFePO4 battery replaces lead acid

Support 4 in series, or 10 in parallel
Brand name:Keheng OEM
Model Number:KH-LFP-SC-12100B
Price: Negotiable
Support:wholesale,OEM.ODM
Warranty:10 years

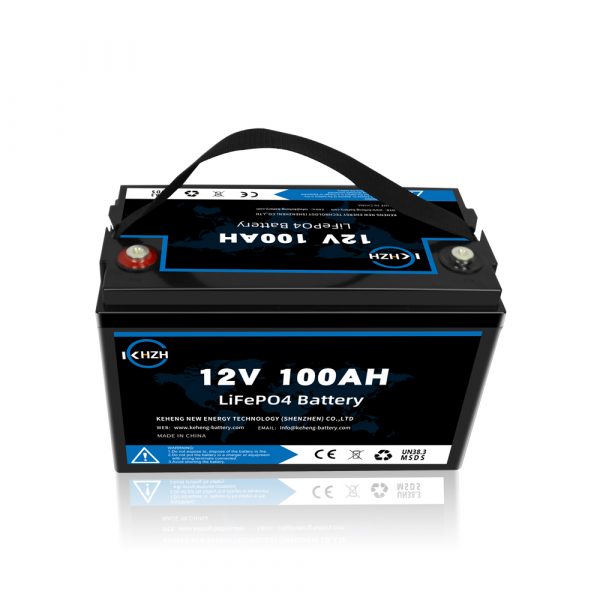

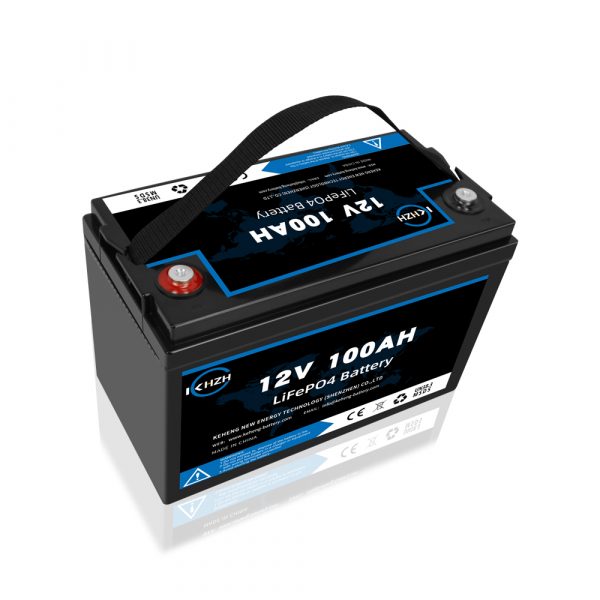

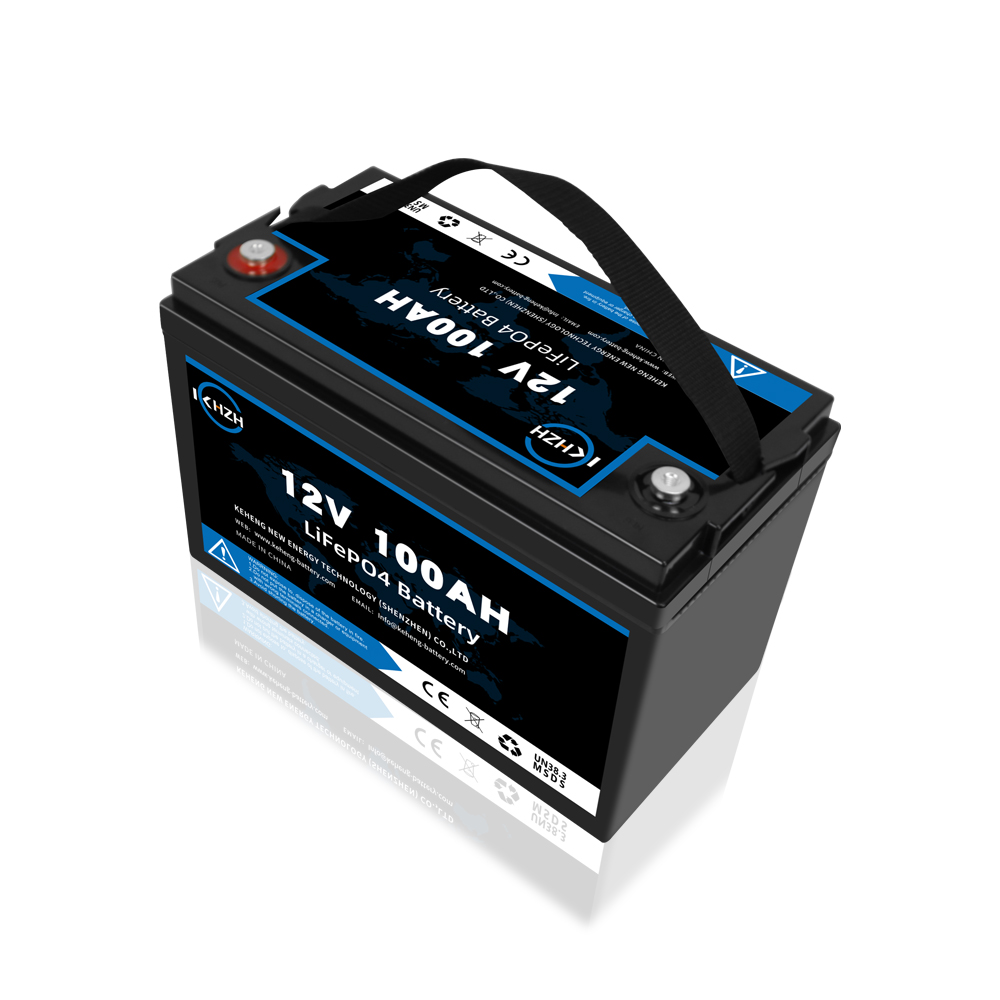

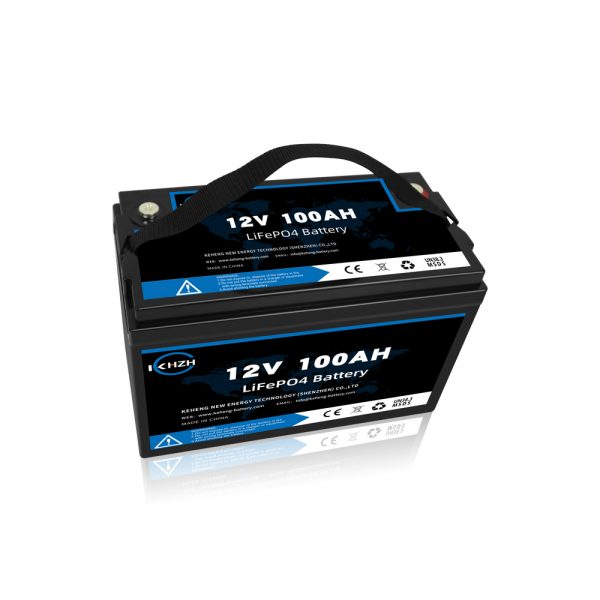

12V 100Ah LiFePO4 battery

This Group 31 12V 100Ah LiFePO4 battery packs a big punch in a small package. Engineered in a SLA case, but with 100Ah of Lithium Iron Phosphate (LiFePO4) technology, this battery has 2 times the power, half the weight, and lasts 4 times longer than a 100Ah sealed lead acid battery – providing exceptional performance & lifetime value. Combine 2 for 24 Volts or 4 for a 48 Volt system. 100 Amp hours of capacity provides a full day of power for high amp draw electronics like Garmin fish finders, ice augers, or anything where you need a longer run time.

Group 31 12V 100Ah LiFePO4 battery replaces lead acid

This Deep Cycle Lithium Iron battery matches the dimensions of group size 31 and can be used as a drop-in replacement for equivalent lead acid batteries within the 31 group size.

100 ampere hours (Ah). Keheng Lithium batteries provide consistent power for all 100 amp hours. KH LiFePO4 batteries have a flat voltage curve, which means they have a steady power output as the battery discharges. The power output will not dramatically drop like similar sized SLA batteries. You get all the juice down to the last drop.

Group 31 Lithium Batteries

battleborn 100ah 12v lifepo4 battery ,Lithium group 31 batteries are becoming more and more common thanks to the advancements in chemistry and electronics.

Lithium Iron Phosphate (LiFePO4) group 31 batteries with protective Battery Management Systems (BMS) that monitor battery conditions including voltage, charging/discharging current, temperature, etc. prevent undesired events, often can directly replace lead-acid batteries in marine, automotive, off-the-grid, and other deep cycle applications.

When compared with lead-acid batteries, lithium batteries are 2-3x lighter, can withstand 5-10x more charging/discharging cycles, can provide almost fade-free power regardless of the charge condition, etc., but they are also more expensive than equivalent lead-acid batteries.

Also, lithium batteries must be recharged using dedicated lithium battery chargers or advanced AGM battery chargers that feature dedicated lithium battery charging modes.

Due to their price, lithium Group 31 batteries are used where weight savings are important and when their features justify the price difference – they are commonly used as RV house batteries, as lightweight trolling motor batteries, in the off-the-grid, medical and security applications, etc.

12V 100Ah LiFePO4 battery

Battery box waterproof design

Keheng New Energy Co., Ltd. uses brand-new plastics to produce battery boxes, which are processed with precision instruments to ensure that each battery has excellent waterproof performance and can meet the needs of RV and MARINE in marine, outdoor camping, and extremely cold areas.

LiFePO4 battery replaces lead acid

Best Battery Bms Protection Board To Monitor Battery

Battery Management Systems (BMS), also known as the “brain” of the battery, are responsible for the efficiency, safety, and longevity of Lithium-ion batteries. Important functions of the BMS include state identification, ensuring balanced charge cycles, measuring cell voltages, etc.
Group 31 12V100Ah LiFePO4 Lithium Battery 4

Our smart BMS can easily be interfaced with our battery intelligence platform –keheng, which provides intelligent insights, real-time analytics, custom alerts and the capability to operate remotely, ensuring a hassle-free experience.

Group 31 12V100Ah LiFePO4 Lithium Battery 8

The BMS motherboard is fixed on the hardware bracket, the design level reaches the car bracket level, to ensure that the circuit board will not receive any physical collision, the battery box and the hardware fasteners are precisely matched, and the fixed battery pack can withstand transportation and marine, RV, outdoor Harsh environment bumps

Group 31 12V100Ah LiFePO4 Lithium Battery 6

Group 31  Lithium Battery Applications

Group 31 batteries are very common in marine, automotive, off-the-grid and similar applications, making them one of the most popular battery groups.

  • Solar/wind Energy storage system
  • Golf carts
  • Recreational Vehicles(RVs)
  • Marine machine
  • UPS Backup power system
  • Solar street light

Group 31 12V100Ah LiFePO4 Lithium Battery 1

Batteries in series and parallel

The main difference in wiring batteries in series vs. parallel is the impact on the output voltage and the capacity of the battery system. Batteries wired in series will have their voltages added together. Batteries wired in parallel will have their capacities (measured in amp-hours) added together.

Connecting a battery in parallel is when you connect two or more batteries together to increase the amp-hour capacity. With a parallel battery connection .

Group 31 12V100Ah LiFePO4 Lithium Battery 7

Features

  • 电压可从12V扩展到48V,为各种产品供电。
  •  支持4台串联,或10台并联。
  •  LCD显示可选,实时了解电池电压和容量。
  •  100A连续输出电压,可连续为大功率设备充电。
  •  智能BMS系统可以精确控制电池,提高寿命,不爆炸,不起火。
  •  替代重铅酸(AGM / GEL)电池,重量为 1/3,但容量相同。
  • 2000 次循环寿命@100% DOD , 7000 次循环寿命@50% DOD , 10 年设计寿命。
  • 免维护、全密封、防水。



智能电池管理系统(BMS)

  • 过充保护功能
  • 过放电保护功能
  • 过流保护功能
  • 短路保护功能
  • 过温保护功能
  • 自动电池平衡功能

Technical data

标称电压 12.8V
额定容量 100AH @0.5C 至 9.6V
储存能量 1280Wh
循环寿命@100%DOD 2000 次循环
大约。重量 11公斤
内阻 ≤30.0 mΩ
最大限度。充电电流 100 安
最大限度。放电电流 100 安
充电截止电压 15.2V
放电截止电压 9.6V
方面 L330mm×W175mm×H225mm
串并联 最多串联 4 节电池,或并联 10 节电池
工作温度范围

收费

释放

推荐的



32°F (0°C) 至 113°F (45°C)

-4°F (-20°C) 至 140°F (60°C)

59°F (15°C) 至 95°F (35°C)

自放电率 ≤3%/月
预期寿命(年) 10 年 @25°C 在 80%DOD
自放电 大约。每月 2% @ 25°C
长期储存 每 6 个月充电一次
短路保护 短路后自动恢复
终端类型 母铜嵌件 M8 (M8/mm)

性能特点

Download

KH-LFP-SC-12100B 数据表

用户手册

产品保修协议
