Deep Cycle 48V 30AH Lithium Golf Carts Battery

48V 30Ah lifepo4 lithium battery for RV/marine/golf cart/ scooter / solar storage /agm & amr/EV
Nominal voltage:51.2V
Place of Origin: China
Brand Name:KH OEM
Model Number:KH-LFP-4830
Minimum Order Quantity: 10pcs
Price: Negotiable
Support: Wholesale, OEM.ODM
Warranty: 10 years

48V 30AH Lithium Golf Carts Battery

This 48V 30Ah lithium golf cart battery is made by LiFePOmaterial, which keep the battery have a super long lifespan —2,000+ recharge cycles, and up to 7,000 under ideal charging conditions. (5 times lifespan than typical SLA battery), which also incorporate a proprietary high-current BMS that delivers superior peak power along with lightning fast 1C continuous charge and discharge rates, plus they feature COLD CHARGE functionality allowing for cold temperature charging to begin from -20⁰C / -4⁰F.

Independently tested to the highest safety, performance and transportation standards, a single battery will do the work of many lead-acid batteries and unlike lead-acid batteries can be continuously operated in a Partial State of Charge (PSOC) without degrading performance.– providing exceptional lifetime value. 30 Amp hours of capacity provides a full day of power for high amp draw electronics like AGV, AMR, Golf carts, RVs, or anything where you need a longer run time.

KeHeng lithium batteries provide more energy for high consumption than traditional lead-acid batteries. They also offer ultra-fast charging and discharging, high efficiency and a longer cycle life – plus no maintenance!

Not all lithium batteries are created equal. All KeHeng Batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS ensures a long lifetime, safe handling – and high-accuracy State of Charge (SOC) calculations.

Deep Cycle 48V 30AH Lithium Golf Carts Battery

48V LiFePO4 Battery Mangement System (BMS)

48V Battery BMS

More Than 4000 LifeCycles

The independent bracket has better stability and perfect battery protection.

48V 30ah deep cycle battery

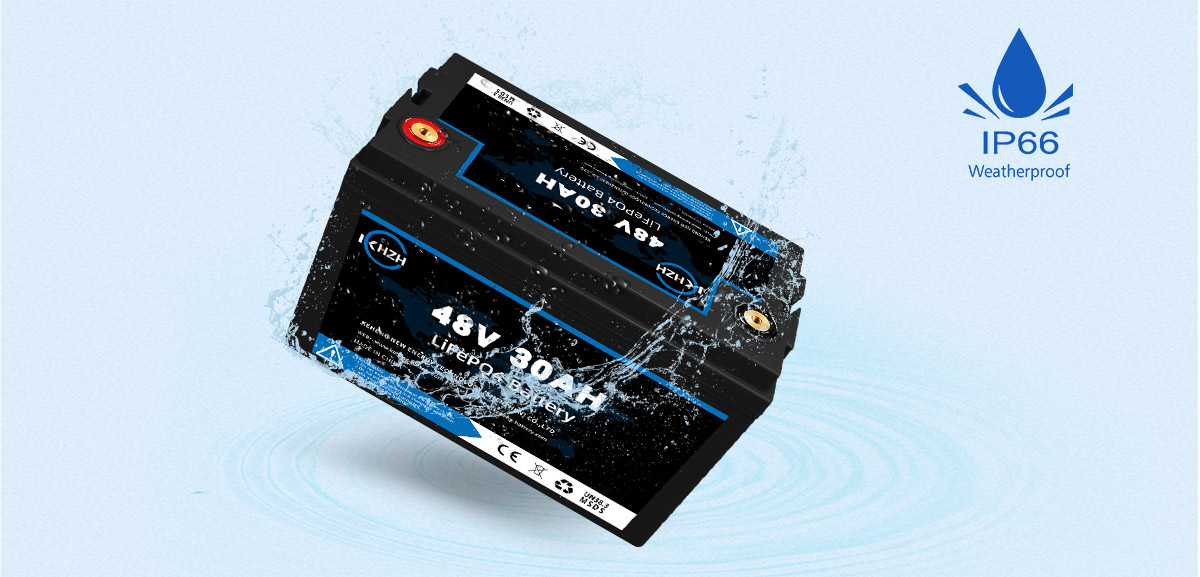

48V 30AH Hight Quality IP66 Waterproof Battery BOX

48v 30ah Waterproof Battery BOX

48V 30AH Lithium Battery Has Twice The Energy Of Lead-acid Battery For The Same Weight

48V golf cart battery

Superior Opportunity

48V 30Ah Lithium Ion Battery is designed and engineered in the china by KeHeng, the world’s leading supplier of deep-cycle batteries for nearly 20 years. You can be confident KeHeng is the highest quality product on the market—backed by KeHeng’s extraordinary customer support.

Primary Competitive Advantages

Origin Guarantee/Warranty Price Product Features Product Performance Prompt Delivery Quality Approvals Reputation Service Small Orders Accepted

Lithium Battery Application

  • AGV/Automated Guided Vehicles
  • AMR/Autonomous Mobile Robots
  • Golf carts
  • Recreational Vehicles(RVs)
  • Marine machine
  • UPS Backup power system
  • Solar street light

详情8

Auto-Balancing Function

Improve charging efficiency in the long term Connection In Paralle( Maximum of 4 Batteries).

30AH 48V Lithium Battery For AGV AMR Golf Carts 5

Features

  • The working temperature can reach -20°C
  •  LCD display optional, real-time understanding of battery voltage and capacity.
  •  30A continuous output current can continuously charge big-power devices.
  •  The intelligent BMS system can accurately control the battery to improve the lifespan, no explosion, no fire.
  •  Drop-in replacement for heavy lead-acid(AGM / GEL) battery,1/3weight but same capacity.
  • 2000times cycle life@100% DOD , 7000times cycle life@50% DOD , 10 years design lifespan.
  • Maintenance-free, fully sealed, and waterproof.

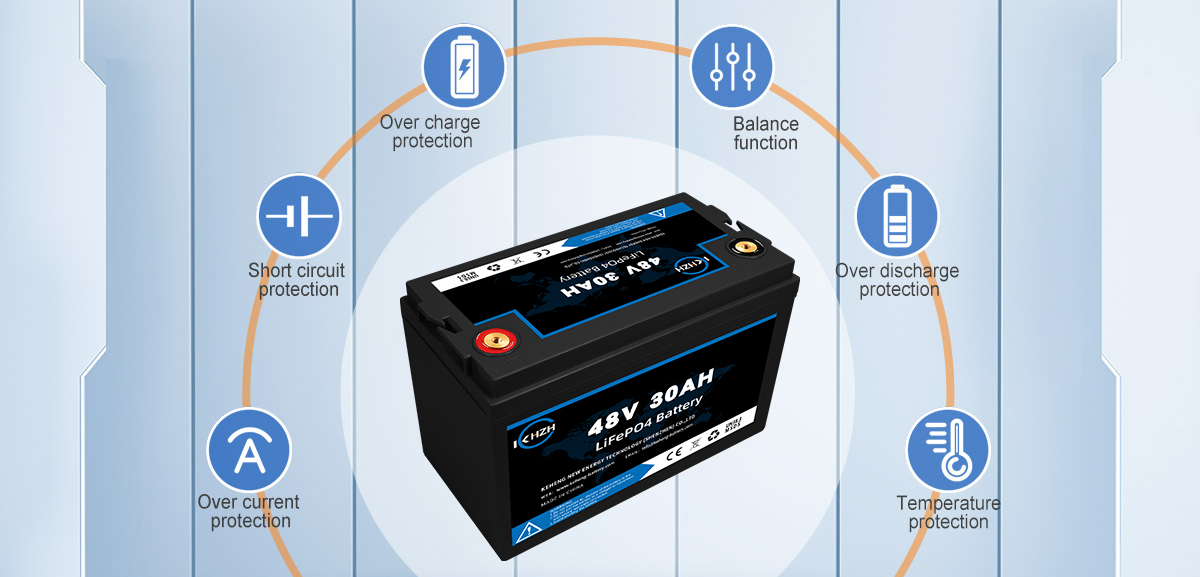

Intelligent Battery Management System(BMS)

  • Over charge protection function
  • Over discharge protection function
  • Over current protection function
  • Short protection function
  • Over temperature protection function
  • Automatic cell balance function

Technical data

Nominal Voltage 51.2V
Rated Capacity 30AH @0.5C to 43.2V
Stored energy 1536Wh
Cycle life@100%DOD 2000 Cycles
Approx. Weight 14kg
Internal Resistance ≤40.0 mΩ
Max. Charge Current 30 A
Max. Discharge Current 30 A
Charge Cut-off Voltage 58.4V
Discharge Cut-Off Voltage 40V

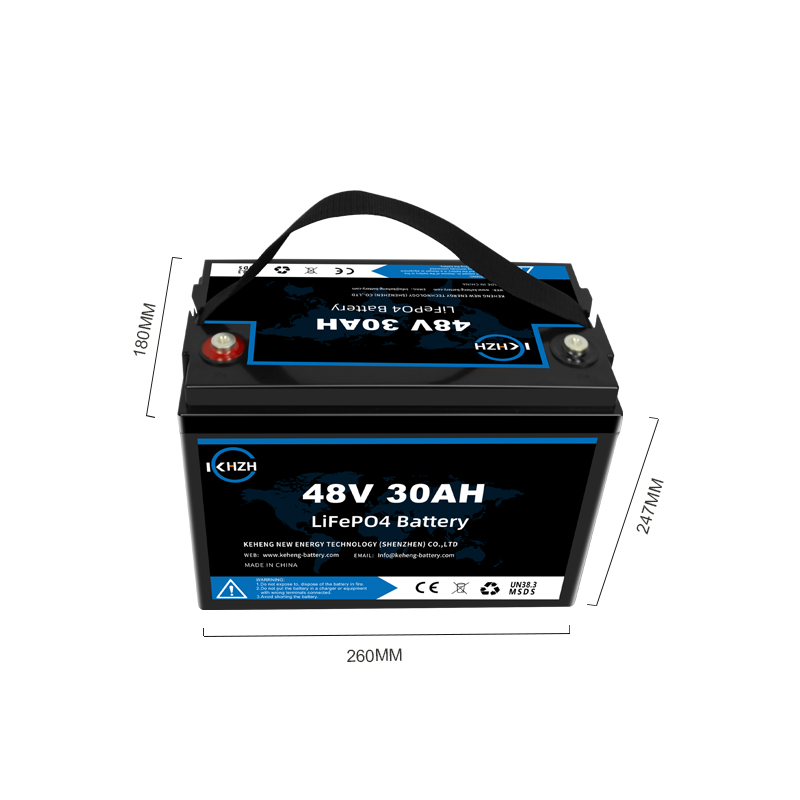

Dimensions L260mm×W180mm×H247mm
Low temperature self heating Avaliable(0~-20°C)
Operating Temperature Range

Charge

Discharge

Recommended



-4°F (-20°C) to 113°F (45°C)

-4°F (-20°C) to 140°F (60°C)

59°F (15°C) to 95°F (35°C)

Self-Discharge Rate ≤3%/month
Life Expectancy (years) 10 years @25°C in 80%DOD
Self Discharge Approx. 2% per month @ 25°C
Long Term Storage Charge every 6 months
Short Circuit Protection Automatically recover after removal of short
Terminal Type Female Copper Insert M8 (M8/mm)

PERFORMANCE CHARACTERRISTICS

Download

KH-LFP-4830 DATASHEET

USER MANUAL

PRODUCT WARRANTY AGREEMENT
